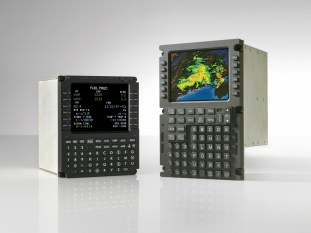

CDMS-3000 is a Control Display & Management System, featuring a pioneering 3 x 4 inch AMLCD panel with VGA resolution. It combines high brightness and contrast with compact dimensions, low weight and excellent energy efficiency.
A complete product family
The CDMS-3000 comes as a complete product family, including the civil CDMS-3739 (ARINC 739), the military-oriented CDMS-3153 (combo ARINC-429 and MIL-STD-1553), and the versatile CDMS-3702, which hosts Barco's unique MOSArt platform. This MOSArt-equipped version allows customers to develop or integrate their own application (e.g. FMS or mission solution) on the flexible CDMS-3000 platform. Various keyboard sizes with different engravings and colors are available, enabling form-fit-function compatibility with existing units.
Features
- 3 x 4 inch sunlight-readable color display
- 640 x 480 standard resolution (VGA)
- NVG compatible
- Compact 6.75" or legacy 8.625 high designs
- Various interface options
- Video composite input
- ARINC 429
- MIL-STD-1553B:
- Unique LED backlight technology
- Extensive Built-In-Testing (BIT)
- MOSArt compatible (CDMS-37XX)
