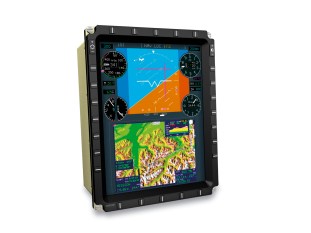

Barco CHDD-268 6 x 8 inch Cockpit Head Down Display

Dostępność

Niedostępny

The CHDD-268 is an advanced, very compact 6 x 8 inch avionics displays that accepts both digital video inputs (DVI) and most of the currently available analog video inputs (Composite, RGB, STANAG,...). It is fully compatible with Barco's PU-2000 Processing Unit.

High brightness, excellent contrast, wide viewing angles

Equipped with sunlight-readable AMLCD and LED backlight technology, the CHDD-268 provides exceptionally high brightness, excellent contrast, and a very wide viewing angle in all directions. It allows the same unit to be used in portrait as well as landscape mode.

The innovative CHDD-268 unit is certified up to level A for displaying critical data. Because of this, the display can be used as Primary Flight Display (in combination with an external symbol generator like the PU-2000) in almost any type of aircraft.

Features

• 2 Digital Video Inputs (DVI)
• Various possible analog video inputs (Composite, VGA to XGA RGB (SoG or +H,+V), STANAG 3350B & C)
• Exceptional optical performance
• Extra wide viewing angle
• Unique infrared touch screen option
• Compact design
• Various keyboard options
• Option NVIS Class B compatibility
• Ambient luminance control
• Compatible with PU-2000 Processing Unit
• Extensive Built-In Testing (BIT)
