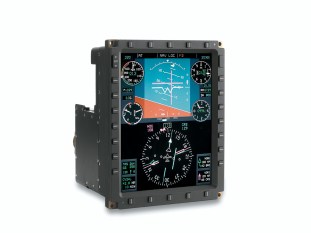

The MFD-3068 is a Multi-Function, primary flight instrumentation display with a sunlight readable 6" x 8" Active Matrix Liquid Crystal Display and LED backlight.
Versatility
AMLCD and LED-backlight technology provides high brightness, excellent contrast and reduced volume with low power consumption.
Several bezel and interfacing options are available allowing the MFD-3068 to fit into various avionics architectures for both new and retrofit aircraft.
Main features:
- 6 x 8 inch AMLCD color screen
- 1024 x 768 XGA resolution
- NVG compatibility option
- Extensive Built-In Testing (BIT)
- Modular hardware architecture
- Compact design
- Several interface options
- Up-to-date application & graphics processing options
- Integrity monitoring option for DAL A applications
- Can be used as remote processing unit for limited space applications
- Forced air-cooling resulting in high reliability and low life cycle cost
- Supports MOSArtTM
Features
Possible interfaces:
- Arinc429 input/output channels (with software adjustable speed)
- MIL-STD-1553 redundant bus (A & B) (with RT & BC capability)
- Arinc708 input channels
- Open/GND & 28V/Open discrete inputs
- Open/GND discrete outputs
- Ethernet lines 10/100Mbit
- EIA-485/EIA-422 (general purpose communication line)
- Arinc825 (avionics CAN bus)
- Analog video input/output
- DVI input (fixed XGA resolution)
- DVI output (display copy or second independent image)
- SMPTE-292M video input
- Arinc818 input (fixed XGA resolution)
- Arinc818 output (display copy or second independent image)
- RS-232 (maintenance line)
- Internal CFAST SATA SSD up to 128GB
